Technical specifications
Principle
- Floorstanding Speaker, 4 way, double bass, bass reflex
Drivers
- 2 x 8” woofer
- 1.2" dome-tweeter
- 0.75" super-tweeter
- 6.5“ midrange
Power Handling (RMS/Max.)
- 280 / 500 Watts
Sensitivity (2.8V/1m)
- 93 dB
Impedance
- 4 – 8 Ohms
Frequency Response
- 22 - 55000 Hz
Crossover Frequencies
- 380 Hz / 2400 Hz / 17500 Hz
Recommended Amplifier Output
- > 30 watts
Dimensions (WxHxD)
- Cabinet; 260 x 1175 x 402 mm
- Enclosure incl. Spikes: 335 x 1225 x 420
Highlights
Principle
- Floorstanding Speaker, 4 way, double bass, bass reflex

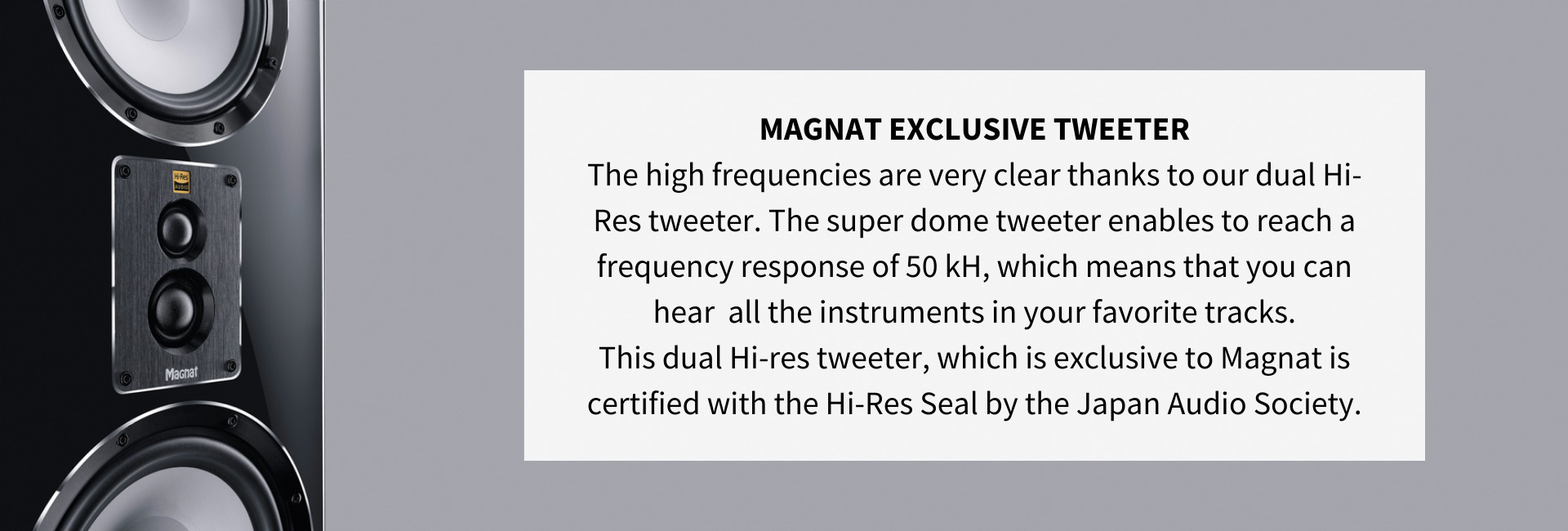

Tweeter & Super-Tweeter
- 30 mm dome tweeter with coupling volume, long-excursion drive and particularly wide surround for especially deep mid-tone coupling
- Additional 20 mm super dome tweeter for ideal omnidirectional sound distribution and extended reproduction up to 55 kHz
- Powerful neodymium ring magnet systems for excellent dynamics
- Special sound guides in the solid ABS/aluminium front panel for optimum dispersion characteristics
- Newly developed high-res tweeter module with two fmax Signature dome tweeters
Woofer / midrange
- Klippel® optimised construction
- Distortion-optimised magnet systems with double induction rings and stray field optimisation
- Ceramic-aluminium sandwich membranes with high rigidity and optimum internal damping, optimised by inverse dust caps
- Generously vented die-cast aluminium baskets to prevent turbulence and compression effects
- Sophisticated voice-coil ventilation for high efficiency
Crossover
- High-quality interior cabling

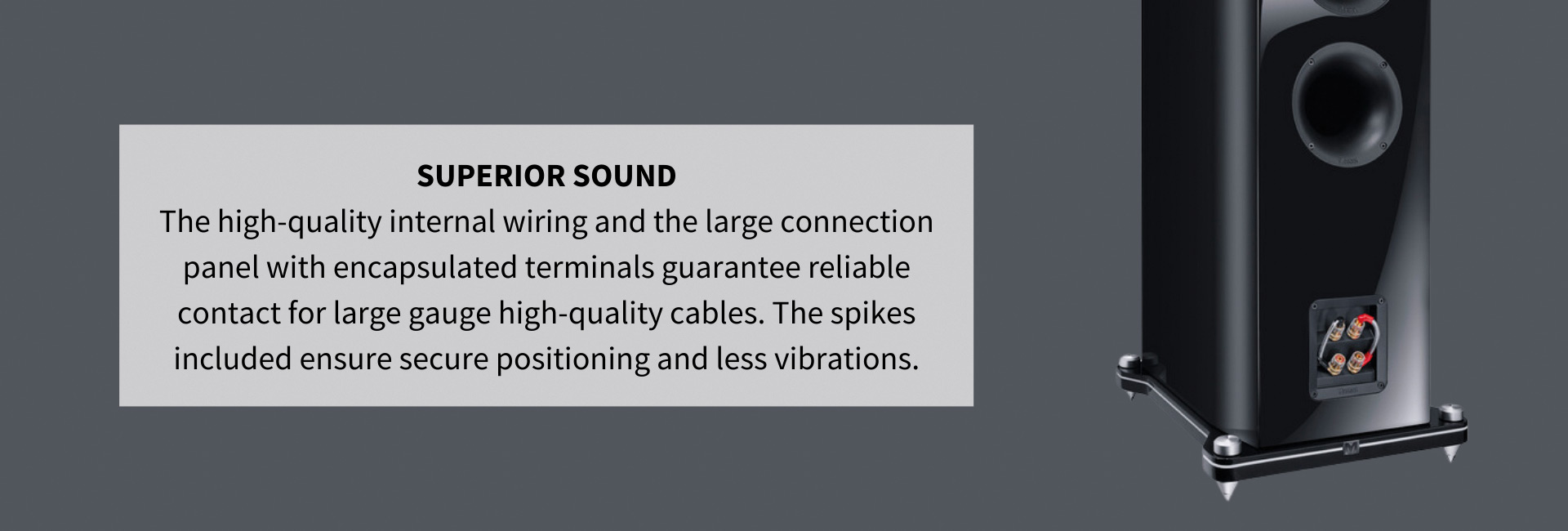

- Large terminal panel with solid and encapsulated connectors to accommodate the use of high-quality heavy gauge cables
- Elaborate phase and amplitude-optimised APOC crossover
- Bi-wiring/bi-amping option, pre-installed cable bridges for single wiring
Cabinet
- Detachable cloth grille with optimized acoustic transmissivity and hidden magnetic fixing
- Decoupling silicone feet and metal spikes included
- Solid MDF base plate with black high-gloss lacquer
- Two Magnat Airflex ports with large openings ensure an optimum bass response without ambient noise
- Height-adjustable, counter-locked solid metal spikes with replaceable tips for optimum stability on all floors
- Very sturdily constructed, multi-braced MDF enclosure in a timeless-modern design

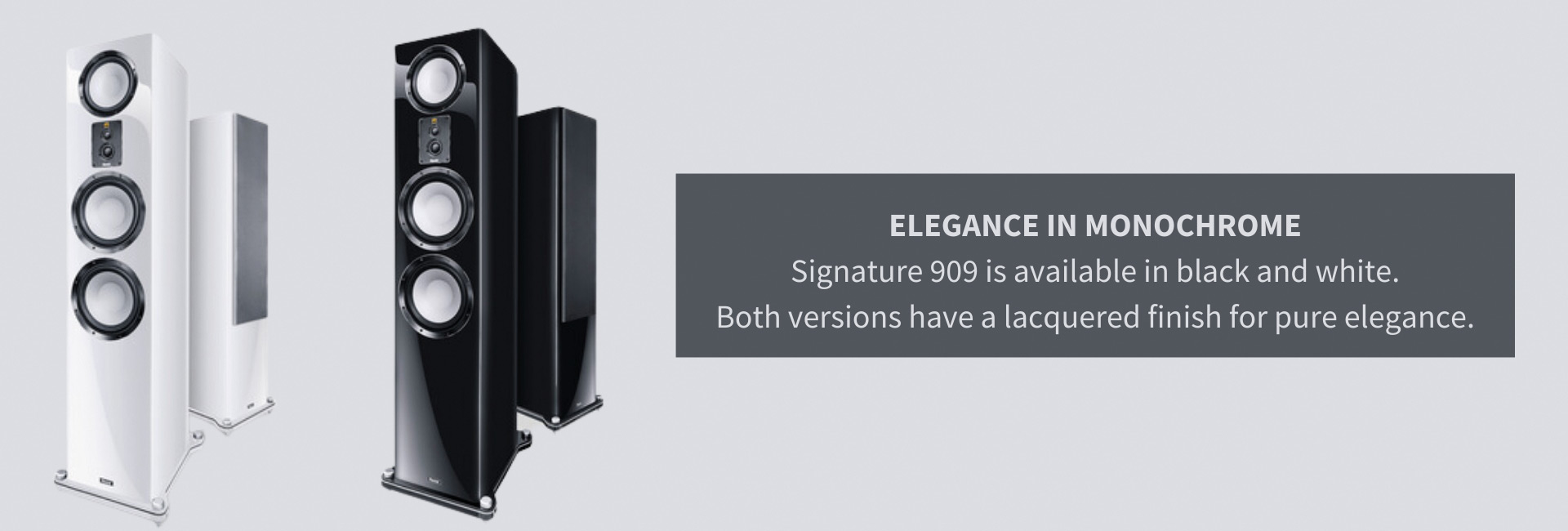

- Noble high-gloss lacquered body (black version) or high-gloss lacquered real wood veneer (macassar version)
